| • | Remove (if present) the spark plug cover. |
| • | Remove the spark plug wires. |
| • | Unbolt and remove the guides for the spark plug wires. |

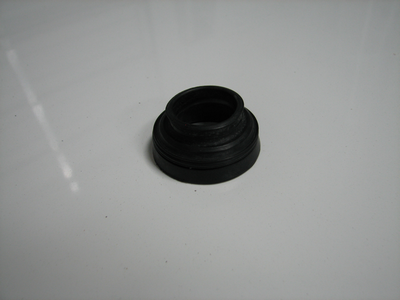

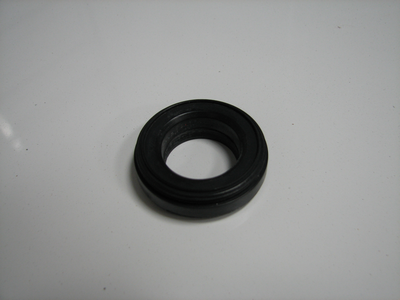

| • | Remove the seals from the shaft of the coils. Either using these seals or the alternate seal (30522-RNA-A01), turn the seal inside out and re-install on the coil body. This should provide a tight fit for the coil in the spark plug tube.  Coil seal  Coil seal turned inside out |
| • | Grind the corners of the coils so that they clear the valve cover. |

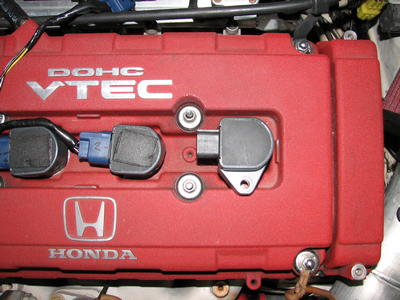

Valve cover with modified and unmodified coils

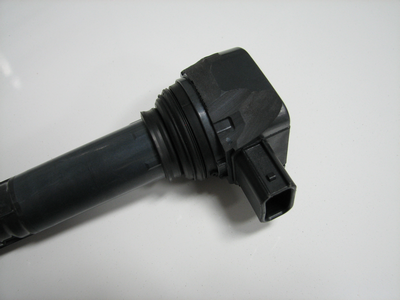

Coil after modification

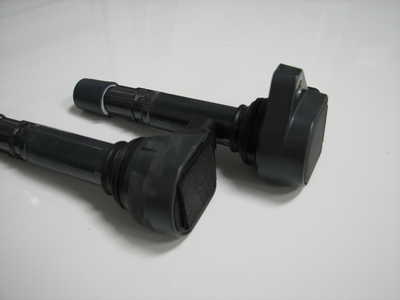

Modified vs unmodified coils
| • | Install and plug in the coils. |
| • | Retain the coils with the stock plastic cover. You may need to add small pieces of foam to the coils to ensure they are held snugly. |
